| URL | http://<catalog-url>/<serviceName>/MobileServer |
|---|---|
| Parent Resource | Catalog |
| Child Resources | Mobile Layer |
Description
The mobile service resource represents a mobile service published with ArcGIS Server. The resource provides information about the service such as the service description, spatial reference, initial and full extents, and the various layers contained in the published map document.

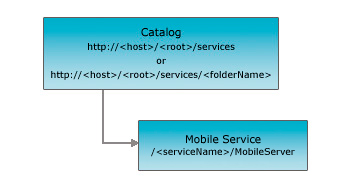

Resource Hierarchy
Parameters
| Parameter | Details |
|---|---|
| f | Description: The
response format. The default response format is html. Values: html | json |
Example Usage
Example 1: TODO
JSON Response Syntax
{
"serviceDescription": "<serviceDescription>",
"mapName": "<mapName>",
"description": "<description>",
"layers": [
{ "id": <layerId1>, "name": "<layerName1>" },
{ "id": <layerId2>, "name": "<layerName2>" }
],
"spatialReference": <spatialReference>,
"initialExtent": <envelope>,
"fullExtent": <envelope>,
"units": "<units>"
}
JSON Response Example
{
"serviceDescription": "Test Mobile Service Description",
"mapName": "Layers",
"description": "",
"layers": [
{ "id": 0, "name": "wind" },
{ "id": 1, "name": "ushigh" },
{ "id": 2, "name": "counties" }
],
"spatialReference": {"wkid": 104000},
"initialExtent": {
"xmin": -183.78, "ymin": -18.81, "xmax": -61.40, "ymax": 109.14,
"spatialReference": {"wkid": 104000}
},
"fullExtent": {
"xmin": -183.78,"ymin": 16.30,"xmax": -61.40, "ymax": 74.03,
"spatialReference": {"wkid": 104000}
},
"units": "esriDecimalDegrees"
}
